結構：內管為波紋狀黑色防靜電PTFE軟管，外覆不鏽鋼絲編織。溫度範圍：-70℃至+260℃。應用場合：用於輸送腐蝕性化學物質、熱空...
結構：PC是一款兩端平滑，中間螺旋波紋的PFA波紋軟管 工作溫度：-180°C~+260°C 應用範圍：高要求的半導體、光伏、航空航天、液...

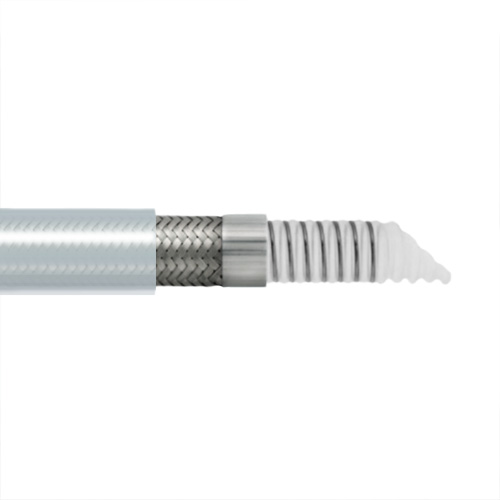

透明矽膠包覆螺旋鋼絲增強波紋特氟龍管 TCWSSI
結構：內管為波紋狀的PTFE軟管，內置不鏽鋼螺旋鋼絲加強，外覆不鏽鋼絲編織和透明矽膠層
溫度範圍：-60℃至+200℃
標準與防靜電內襯可供選擇。
應用場合：特別適合用在輸送蒸汽或者要求高負壓的場合。這個管子具有非常優秀的機械強度。抗扭結，即使在高溫時都有極好的耐高壓和耐真空性能。矽膠保護層提供了更好的柔韌性和可清潔性，主要用於食品、生物及化妝品生產領域。
符合FDA認證。
Construction: A helically convoluted PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with silicone vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -60°C and +200°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. Silicone vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio, and Cosmetic industry.
Certification: FDA.
|
編碼 |
內徑 |
最小外徑 |
壁厚 |
彎曲半徑 |
工作壓力 |
爆破壓力 |
|
|
in. |
mm |
mm |
mm |
mm |
bar |
bar |
|
|
TCWSSI010 |
3/8" |
9.5 |
19.1 |
0.75 |
25 |
110 |
440 |
|
TCWSSI013 |
1/2" |
12.7 |
22.1 |
0.75 |
35 |
100 |
400 |
|
TCWSSI016 |
5/8" |
15.9 |
27.9 |
0.75 |
45 |
85 |
340 |
|
TCWSSI019 |
3/4" |
19 |
31.4 |
0.90 |
50 |
80 |
320 |
|
TCWSSI025 |
1" |
25.4 |
39.4 |
1.00 |
70 |
60 |
240 |
|
TCWSSI032 |
1-1/4" |
32 |
51.1 |
1.00 |
85 |
45 |
180 |
|
TCWSSI038 |
1-1/2" |
38 |
56.4 |
1.00 |
110 |
35 |
140 |
|
TCWSSI051 |
2" |
50.8 |
69.9 |
1.10 |
140 |
25 |
100 |
