料桶插底管接頭套件由料桶插底接頭、管子和運輸塞組成，是一種可以配合分配接頭（抽液槍頭、分配槍頭），實現安全高效地從料桶中...

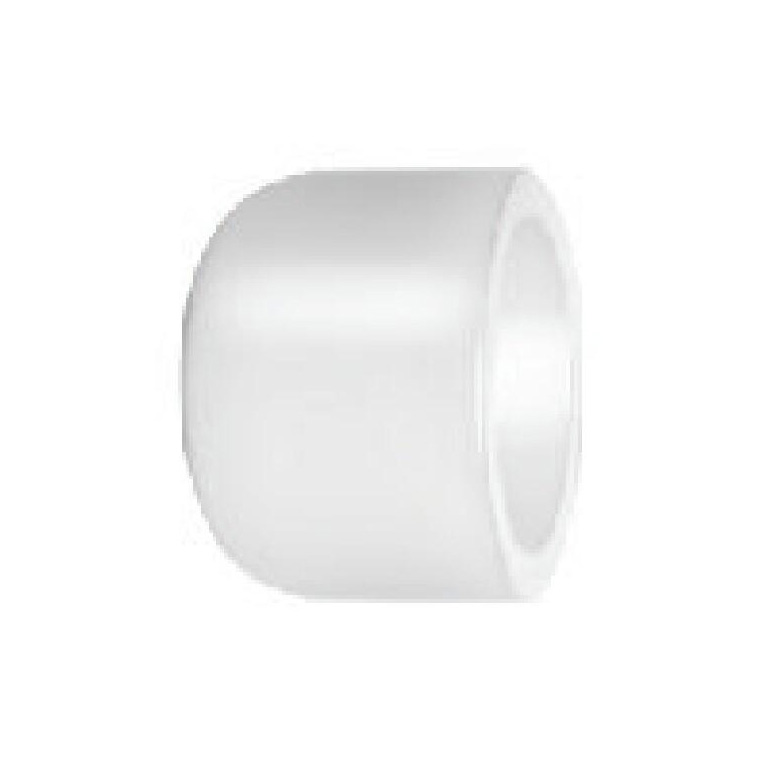

PVDF承插焊管帽 VECB，高純PVDF管路係統，PVDF材質具有良好的化學穩定性、潔淨度、光滑度等性能，同時性價比高、易加工，在微...
RAYSAN PFA異徑三通 UTRA
特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維持良好的尺寸穩定性和耐腐蝕性，並具有良好的機械特征，抗磨損。
材質：PFA
接口形式：擴口連接
最高使用溫度：200℃
最高使用壓力：0.7MPa
傳送介質：液體
*螺帽有PFA和PVDF材質可選
*PVDF不適用於溫度超過120℃的應用

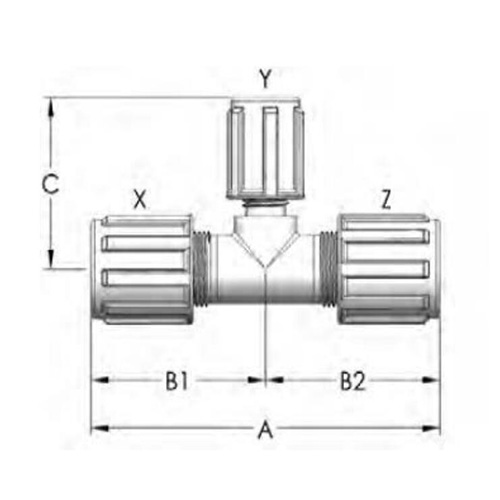

編碼
管外徑 X*Y*Z
Orifice
A
B1
B2
C
(inch)
(mm)
(mm)
(mm)
(mm)
(mm)
UTRA0604041
3/8"*1/4"*1/4"
3.81mm
86.87mm
44.70mm
42.16mm
42.16mm
UTRA0604061
3/8"*1/4"*3/8"
3.81mm
89.41mm
44.70mm
44.70mm
42.16mm
UTRA0606041
3/8"*3/8"*1/4"
3.81mm
86.87mm
44.70mm
42.16mm
44.70mm
UTRA0804041
1/2"*1/4"*1/4"
3.81mm
89.66mm
47.50mm
42.16mm
42.16mm
UTRA0804061
1/2"*1/4"*3/8"
3.81mm
92.20mm
47.50mm
44.70mm
42.16mm
UTRA0804081
1/2"*1/4"*1/2"
3.81mm
95.00mm
47.50mm
47.50mm
42.16mm
UTRA0806061
1/2"*3/8"*3/8"
6.35mm
92.20mm
47.50mm
44.70mm
44.70mm
UTRA0806081
1/2"*3/8"*1/2"
6.35mm
95.00mm
47.50mm
47.50mm
44.70mm
UTRA0808041
1/2"*1/2"*1/4"
3.81mm
89.66mm
47.50mm
42.16mm
47.50mm
UTRA0808061
1/2"*1/2"*3/8"
9.65mm
92.20mm
47.50mm
44.70mm
47.50mm
UTRA1204121
3/4"*1/4"*3/4"
3.81mm
112.78mm
56.39mm
56.39mm
42.16mm
UTRA1206121
3/4"*3/8"*3/4"
6.35mm
112.78mm
56.39mm
56.39mm
44.70mm
UTRA1208081
3/4"*1/2"*1/2"
9.65mm
103.89mm
56.39mm
47.50mm
47.50mm
UTRA1208121
3/4"*1/2"*3/4”
9.65mm
112.78mm
56.39mm
56.39mm
47.50mm
UTRA1212061
3/4"*3/4"*3/8"
6.35mm
101.09mm
56.39mm
44.70mm
56.39mm
UTRA1212081
3/4"*3/4"*1/2"
9.65mm
103.89mm
56.39mm
47.50mm
56.39mm
UTRA1604161
1"*1/4"*1"
3.81mm
137.16mm
68.58mm
68.58mm
51.31mm
UTRA1606161
1"*3/8"*1"
6.35mm
137.16mm
68.58mm
68.58mm
54.40mm
UTRA1608161
1"*1/2"*1"
9.65mm
137.16mm
68.58mm
68.58mm
57.40mm
UTRA1612161
1"*3/4"*1"
16.00mm
137.16mm
68.58mm
68.58mm
56.39mm
UTRA1612121
1"*3/4"*3/4"
16.00mm
124.97mm
68.58mm
56.39mm
56.39mm
UTRA1616081
1"*1"*1/2"
9.65mm
124.97mm
68.58mm
56.39mm
68.58mm
UTRA1616121
1"*1"*3/4”
16.00mm
124.97mm
68.58mm
56.39mm
68.58mm
