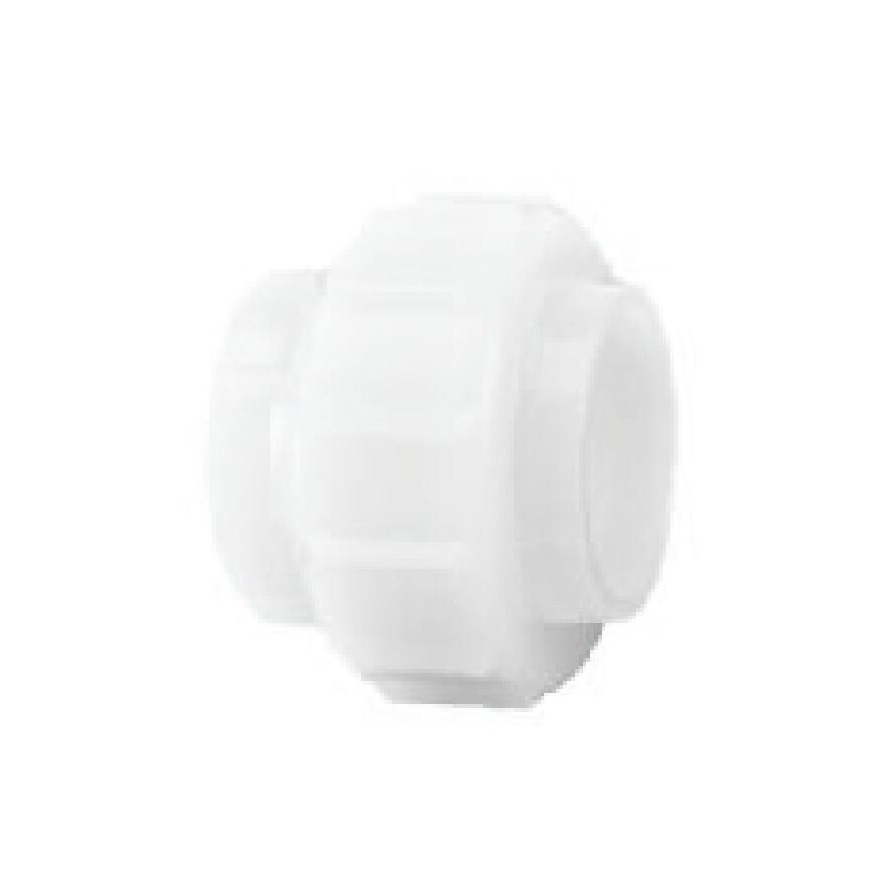

PVDF承插焊由令 VUNB，高純PVDF管路係統，PVDF材質具有良好的化學穩定性、潔淨度、光滑度等性能，同時性價比高、易加工，在微...
PVDF承插焊直通平接頭 VUB，高純PVDF管路係統，PVDF材質具有良好的化學穩定性、潔淨度、光滑度等性能，同時性價比高、易...
RAYSAN PFA三通（一端省空間）RTS1A
特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維持良好的尺寸穩定性和耐腐蝕性，並具有良好的機械特征，抗磨損。
材質：PFA
接口形式：擴口連接
最高使用溫度：200℃
最高使用壓力：0.7MPa
傳送介質：液體
*螺帽有PFA和PVDF材質可選
*PVDF不適用於溫度超過120℃的應用

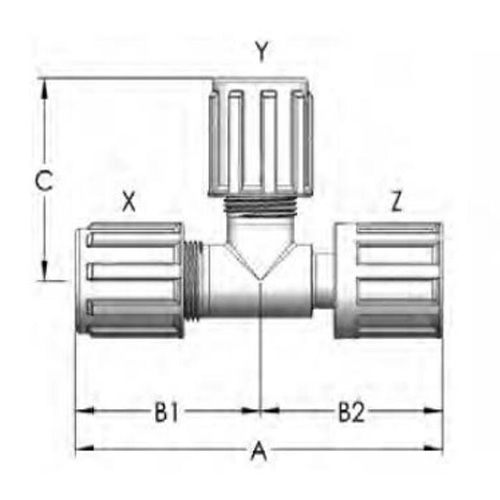

Part No.
X
Y
Z (省空間)
通徑
A
B1
B2
C
(inch)
(inch)
(inch)
(mm)
(mm)
(mm)
(mm)
(mm)
RTS1A040404S1
1/4"
1/4"
1/4"
3.81mm
83.82mm
42.16mm
41.66mm
42.16mm
RTS1A040808S1
1/4"
1/2"
1/2"
3.81mm
88.90mm
42.16mm
46.74mm
47.50mm
RTS1A060406S1
3/8"
1/4"
3/8"
3.81mm
88.65mm
44.70mm
43.94mm
42.16mm
RTS1A060606S1
3/8"
3/8"
3/8"
6.35mm
88.65mm
44.70mm
43.94mm
44.70mm
RTS1A060608S1
3/8"
3/8"
1/2"
6.35mm
91.44mm
44.70mm
46.74mm
44.70mm
RTS1A060808S1
3/8"
1/2"
1/2"
6.35mm
91.44mm
44.70mm
46.74mm
47.50mm
RTS1A061212S1
3/8"
3/4"
3/4"
6.35mm
98.81mm
44.70mm
54.10mm
56.39mm
RTS1A080408S1
1/2"
1/4"
1/2"
3.81mm
94.23mm
47.50mm
46.74mm
42.16mm
RTS1A080606S1
1/2"
3/8"
3/8"
6.35mm
91.44mm
47.50mm
43.94mm
44.70mm
RTS1A080608S1
1/2"
3/8"
1/2"
6.35mm
94.23mm
47.50mm
46.74mm
44.70mm
RTS1A080806S1
1/2"
1/2"
3/8"
6.35mm
91.44mm
47.50mm
43.94mm
47.50mm
RTS1A080808S1
1/2"
1/2"
1/2"
9.65mm
94.23mm
47.50mm
43.94mm
47.50mm
RTS1A080812S1
1/2"
1/2"
3/4"
9.65mm
101.60mm
47.50mm
54.10mm
47.50mm
RTS1A120412S1
3/4"
1/4"
3/4"
3.81mm
110.49mm
56.39mm
54.10mm
42.16mm
RTS1A120612S1
3/4"
3/8"
3/4"
6.35mm
110.49mm
56.39mm
54.10mm
44.70mm
RTS1A120812S1
3/4"
1/2"
3/4"
9.65mm
110.49mm
56.39mm
54.10mm
47.50mm
RTS1A121208S1
3/4"
3/4"
1/2"
9.65mm
103.12mm
56.39mm
46.74mm
56.39mm
RTS1A121212S1
3/4"
3/4"
3/4"
16.00mm
110.49mm
56.39mm
54.10mm
56.39mm
RTS1A160416S1
1"
1/4"
1"
16.00mm
138.18mm
68.58mm
69.60mm
51.31mm
RTS1A160616S1
1"
3/8"
1"
6.35mm
138.18mm
68.58mm
69.60mm
54.10mm
RTS1A160816S1
1"
1/2"
1"
9.65mm
138.18mm
68.58mm
69.60mm
57.40mm
RTS1A161216S1
1"
3/4"
1"
16.00mm
138.18mm
68.58mm
69.60mm
56.39mm
RTS1A161612S1
1"
1"
3/4"
16.00mm
125.48mm
68.58mm
69.60mm
68.58mm
RTS1A161616S1
1"
1"
1"
22.35mm
138.18mm
68.58mm
69.60mm
68.58mm
