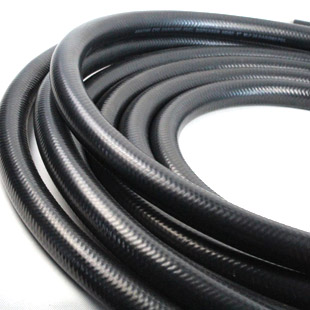

幹冰管 DI
應用範圍:
用於幹冰噴塗的軟管,應用於需要特殊的噴沙清潔服務的行業。軟管超耐磨、耐動態彎曲。
技術特點:
橡膠層導電,電阻率R<106 ohmm,符合美國ASTM防靜電設計標準。
軟管結構:
內管:黑色耐超低溫、耐磨、防靜電合成橡膠。
增強層: 德國產高強度合成纖維編織層。
外管: 黑色超耐低溫、耐磨、抗老化防靜電合成橡膠,光麵,黑色。
適用溫度: -60 to 90℃。
環保標準: 符合歐盟環保標準 ROHS要求。
Applications:
It is specially used for transporting dry ice for spraying and cleaning and can be applied to special sand blasting service industry of specific industrial sector.
Technical characteristics:
Outer rubber layer or inner rubber layer is conductive, with specific resistance R<106 ohmm.
Construction:
Tube: Black low-temperature resistant, wear resistant and antistatic synthetic rubber;
Reinforcement: High-strength synthetic fiber braided layer;
Cover: Black super low-temperature resistant, wear resistant, anti-ageing and antistatic synthetic rubber.
Temperature range: -60 °C +100 °C
Standard/Approval:ROHS
Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Length | |
inch | mm | mm | mm | bar | bar | m | |
DI013 | 1/2" | 12.7 | 25 | 120 | 20 | 80 | 100 |
DI016 | 5/8" | 15.9 | 28 | 150 | 15 | 60 | 60 |
DI019 | 3/4" | 19 | 31 | 170 | 10 | 40 | 60 |
DI019B | 3/4" | 19 | 33.5 | 170 | 20 | 80 | 60 |
DI025 | 1" | 25.4 | 38 | 200 | 10 | 40 | 60 |
DI025B | 1" | 25.4 | 40 | 200 | 25 | 100 | 60 |
