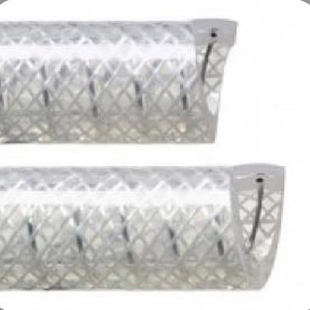

食品級PU鋼絲加網紋軟管 FUPSD
特性:聚醚型聚氨酯材質,特別柔韌,不鏽鋼鋼筋螺旋(AISI
302) 及高強度聚酯纖維網加強。
內、外壁完全光滑,提高流量,降低阻塞的可能性。
低孔隙度,減少滲透問題,也便於清潔。
最大程度的保留了物料的原汁原味及原有屬性。
機械性能卓越,極為柔韌而且質輕、耐多數化學品,是傳輸酸性和堿性溶液的理想解決方案。耐老化、抗水解、抗紫外線、抗菌(jun1)。
不含鄰苯二甲酸鹽,不含鹵素。
軟管兩端鋼絲接地可排靜電。
顏色:透明
溫度:-30℃ + 90℃ (短時間可耐 + 125℃)
認證:符合EU Regulation n° 10/2011食品級標準,符合 FDA (Title 21 CFR 177.2600,含水食物)標準,符合USP VI藥品級規定,符合 TRB S 2153規定, 符合RoHS 2011/65/EU 指令, REACH Regulation
(1907/2006)標準。
APPLICATIONS: Versatile suction and delivery hose for food, cosmetic, health and body care, pharmaceutical substances: spirits with alcoholic content up to 15%, beverages, fruit juices, powders, granules, dry food, pills, tablets, pigments, creams, soaps, aromas & essences. Also suitable for oil and fatty foods. NO suitable for milk and dairy products.
Features: Highly flexible and clear Ether-based Polyurethane reinforced with stainless steel spiral (AISI 302) and high tenacity polyester yarn.
Completely smooth inside and outside to enhance the flow and detect possible blockages.
The low porosity reduces permeation problems and allows easy cleaning process.
Highly neutral in taste and odor, it preserves the organoleptic properties of the media.
Excellent mechanical properties: highly flexible and low weigh, resistant to most chemicals, acids and alkaline solutions, ageing, hydrolysis, UV Rays, bacteria and microbes proliferation.
Phthalates free. Halogens free.
The hose becomes antistatic by grounding the spiral (both ends).
Colour: Transparent
Temperature range: 30℃ + 90℃ (intermittent to +125℃)
Standards:
Food grade according to the EU Regulation n° 10/2011, FDA regulations (Title 21 CFR 177.2600, aqueous foods), USP CLASS VI, TRB S 2153, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).
編碼 |
內徑 |
外徑 |
彎曲半徑 |
工作壓力 |
爆破壓力 |
真空度 |
重量 |
每卷長度 |
|
inch |
mm |
mm |
mm |
bar |
bar |
bar |
kg/m |
m |
|
FUPSD013 |
1/2" |
13 |
23.5 |
65 |
19 |
57 |
0.97 |
0.37 |
60 |
FUPSD020 |
3/4" |
20 |
32 |
100 |
17 |
51 |
0.97 |
0.59 |
60 |
FUPSD025 |
1" |
25 |
37.5 |
125 |
12 |
36 |
0.97 |
0.75 |
60 |
FUPSD032 |
1-1/4" |
32 |
44 |
160 |
11 |
33 |
0.87 |
0.89 |
60 |
FUPSD038 |
1-1/2" |
38 |
51 |
190 |
10 |
30 |
0.87 |
1.11 |
30 |
FUPSD051 |
2" |
50.5 |
65 |
252 |
8 |
24 |
0.77 |
1.70 |
30 |
