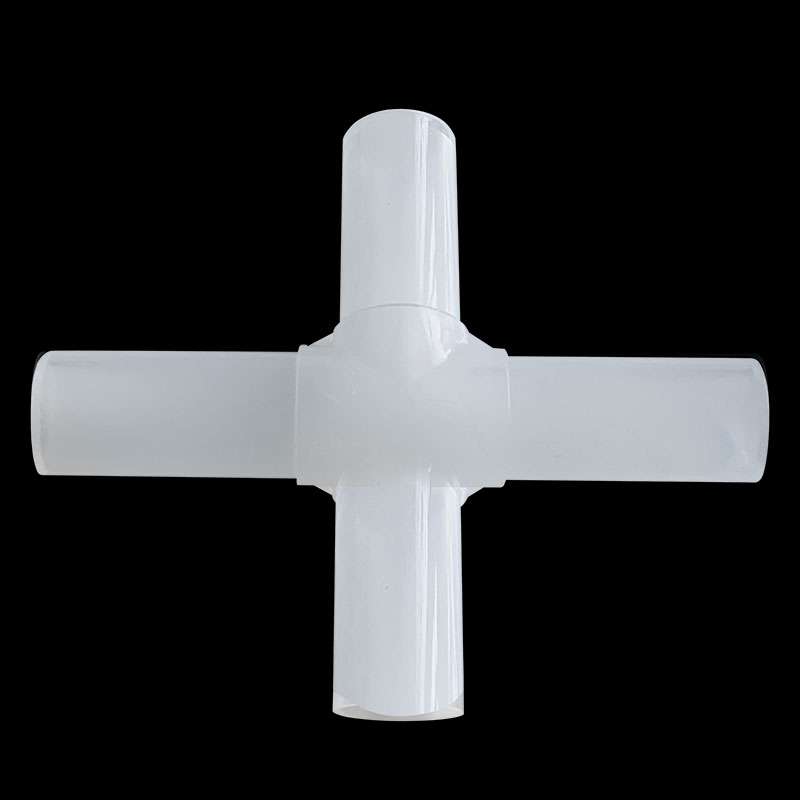

PFA焊接正四通 WCA PFA焊接管接頭，通過熱熔對接，接頭與管子的端麵直接對焊連接，實現完全密封，無需加固和擔心漏液問題，非常適用於...
PFA焊接異徑直通 WSRA PFA焊接管接頭，通過熱熔對接，接頭與管子的端麵直接對焊連接，實現完全密封，無需加固和擔心漏液問題，非常適...
RAYSAN PFA外牙直接頭 MCA
特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維持良好的尺寸穩定性和耐腐蝕性，並具有良好的機械特征，抗磨損。
材質：PFA
接口形式：擴口連接
最高使用溫度：200℃
最高使用壓力：0.7MPa
傳送介質：液體
*螺帽有PFA和PVDF材質可選
*PVDF不適用於溫度超過120℃的應用

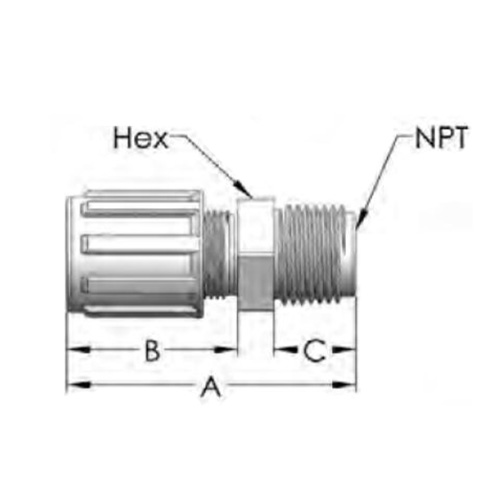

編碼
管外徑
螺紋NPT
通徑
A
B
C
Hex
(inch)
(inch)
(mm)
(mm)
(mm)
(mm)
(mm)
MCA04021
1/4"
1/8"
3.81mm
48.51mm
29.46mm
11.43mm
15.88mm
MCA04041
1/4"
1/4”
3.81mm
50.80mm
29.46mm
13.97mm
15.88mm
MCA04061
1/4"
3/8"
3.81mm
50.80mm
29.46mm
13.97mm
17.46mm
MCA04081
1/4"
1/2"
3.81mm
53.85mm
29.46mm
16.76mm
20.64mm
MCA06021
3/8"
1/8"
4.57mm
53.09mm
32.26mm
13.97mm
20.64mm
MCA06041
3/8"
1/4”
6.35mm
53.59mm
32.26mm
13.97mm
20.64mm
MCA06061
3/8"
3/8"
6.35mm
53.59mm
32.26mm
13.97mm
20.64mm
MCA06081
3/8"
1/2"
6.35mm
56.13mm
32.26mm
16.76mm
23.81mm
MCA06121
3/8"
3/4”
6.35mm
56.39mm
32.26mm
16.76mm
30.16mm
MCA06161
3/8"
1"
6.35mm
60.71mm
32.26mm
21.59mm
36.51mm
MCA08041
1/2”
1/4”
9.65mm
55.88mm
34.54mm
13.97mm
23.81mm
MCA08061
1/2”
3/8"
9.65mm
55.88mm
34.54mm
13.97mm
23.81mm
MCA08081
1/2”
1/2"
9.65mm
58.93mm
34.54mm
16.76mm
23.81mm
MCA08121
1/2”
3/4”
9.65mm
58.93mm
34.54mm
16.76mm
30.16mm
MCA08161
1/2”
1"
9.65mm
63.75mm
34.54mm
21.84mm
36.51mm
MCA12061
3/4”
3/8"
9.65mm
60.20mm
38.61mm
14.22mm
23.81mm
MCA12081
3/4”
1/2"
12.95mm
62.99mm
38.61mm
17.02mm
30.16mm
MCA12121
3/4”
3/4”
16.00mm
62.99mm
38.61mm
17.02mm
30.16mm
MCA12161
3/4”
1"
16.00mm
67.56mm
38.61mm
21.59mm
36.51mm
MCA16081
1"
1/2"
12.95mm
68.33mm
43.94mm
17.02mm
36.51mm
MCA16121
1"
3/4”
16.76mm
68.33mm
43.94mm
17.02mm
36.51mm
MCA16161
1"
1"
22.35mm
73.15mm
43.94mm
21.84mm
36.51mm
