塑筋矽膠軟管 SPSD
應用:推薦用於製藥行業及美容化妝行業液體、固體、粉體的輸送。在食品行業用於食用油、醋類的輸送,也可以用輸送葡萄酒和酒精度低於50%的白酒。透明矽膠軟管,內外壁平滑,可以使物料流通順暢,可與醫用呼吸器配套使用,軟管耐吸,同時探測不到金屬成份。
優點:質輕,無金屬成分,內外平滑
結構:鉑金透明硫化矽膠管,內置PC塑筋增強
顏色:透明
溫度範圍:-60°C
到 +180°C
符合認證:FDA,
USP, BFR, USDA, ISO-10993
長度:標準長度為6米

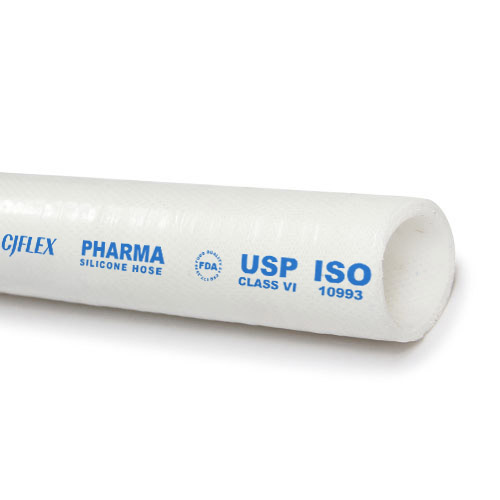

Application: It is especially used for the transportation of liquid, solid and powder in pharmaceutical industry and cosmetic industry. In the food industry, it can also be used for wine and alcohol with less than 50% alcohol. It is a transparent silicone hose, smooth inside and outside the wall, enabling the flow of material to flow smoothly, and can be used in conjunction with a medical respirator. It is resistant to suction while no metal components are detected.
Advantages: Lightweight, metal-free, smooth inside and outside

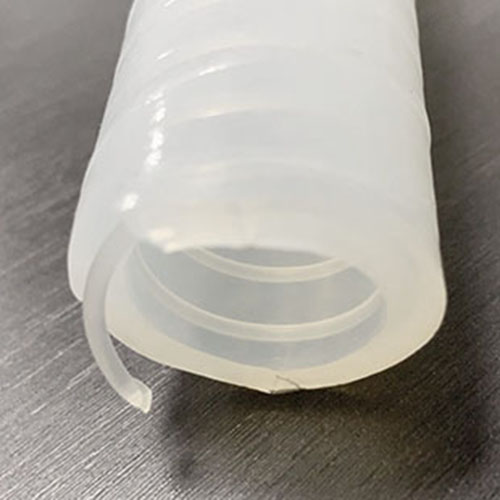

Construction: Platinum cured Silicone with single PC helix reinforcement
Color: Transparent
Temp. Range: -60°C and 180°C
Certification: FDA, USP, BFR, USDA, ISO-10993
Standard length: 6m
編碼
內徑
外徑
彎曲半徑
工作壓力
爆破壓力
真空度
in.
mm
mm
mm
bar
bar
bar
SPSD006
1/4"
6.4
12.5
50
4.8
9.6
0.4
SPSD008
5/16"
7.9
14.0
70
4.6
9.2
0.4
SPSD010
3/8"
9.5
16.0
100
4.4
8.8
0.4
SPSD013
1/2"
12.7
19.0
120
4.2
8.4
0.4
SPSD016
5/8"
15.9
22.0
100
4
8
0.4
SPSD019
3/4"
19
25.0
120
3.6
7.2
0.4
SPSD025
1"
25.4
31.0
150
3.2
6.4
0.4
SPSD032
1-1/4"
32
38.0
180
3
6
0.4
SPSD038
1-1/2"
38
44.0
210
2.8
5.6
0.4
SPSD051
2"
50.8
60.0
300
2.5
5
0.4
