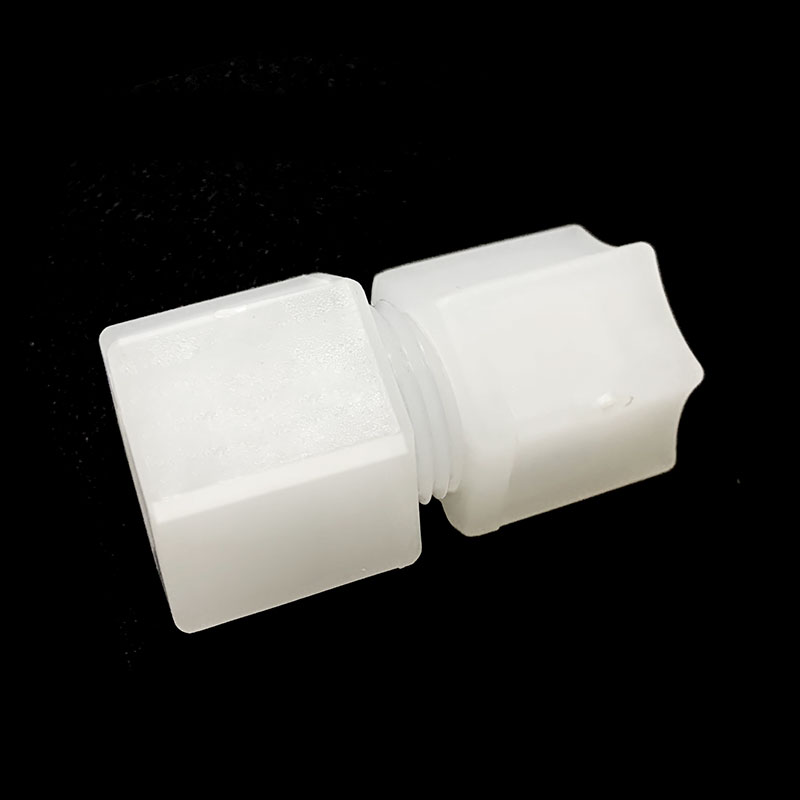

PVDF卡套式內牙直通接頭 PFFC，PVDF具有卓越的耐磨性和抗腐蝕性，機械強度高，抗衝擊（jī）能力強，抗張強度也很好。它的PVDF的塑料阻...
不鏽鋼卡套式管（guǎn）接頭係列CJAN-LOK係列管接頭是一種用來（lái）密封及夾緊導（dǎo）管材料的機械裝置。接頭的機械優點和幾何...

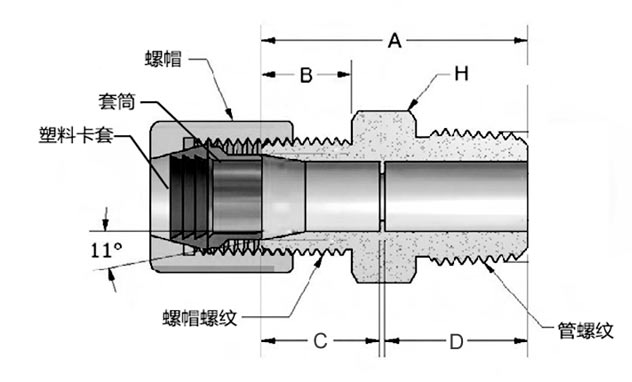

| 編碼 | 口徑（inch) |
螺帽 螺紋 |
A(mm) ±0.4 |
B(mm) ±0.4 |
C(mm) ±.04 |
H(mm) ±0.4 |
D(mm) ±0.4 |
| PFMC02022 | 1/8"*1/8"NPT | 5/16"-24 | 22.23mm | 7.94mm | 11.11mm | 11.11mm | 9.92mm |
| PFMC04022 | 1/4"*1/8"NPT | 7/16"-20 | 25.00mm | 9.53mm | 11.91mm | 15.88mm | 11.91mm |
| PFMCO4O42 | 1/4"*1/4"NPT | 7/16"-20 | 30.16mm | 8.73mm | 11.91mm | 15.88mm | 17.46mm |
| PFMC04062 | 1/4"*3/8"NPT | 7/16"-20 | 30.56mm | 9.53mm | 11.91mm | 20.64mm | 17.07mm |
| PFMC05022 | 5/16"*1/8"NPT | 1/2"-20 | 25.40mm | 9.53mm | 12.30mm | 17.46mm | Thru |
| PFMC05042 | 5/16"*1/4"NPT | 1/2"-20 | 30.16mm | 9.53mm | 12.30mm | 17.46mm | 16.27mm |
| PFMC06022 | 3/8"*1/8"NPT | 5/8"-20 | 28.97mm | 11.91mm | 15.08mm | 20.64mm | Thru |
| PFMC06042 | 3/8"*1/4"NPT | 5/8"-20 | 33.34mm | 11.51mm | 15.08mm | 20.64mm | Thru |
| PFMC06062 | 3/8"*3/8"NPT | 5/8"-20 | 34.13mm | 11.51mm | 15.08mm | 20.64mm | 18.26mm |
| PFMC06082 | 3/8"*1/2"NPT | 5/8"-20 | 40.48mm | 11.91mm | 15.08mm | 23.81mm | 23.81mm |
| PFMC08022 | 1/2"*1/8"NPT | 3/4"-20 | 31.35mm | 14.29mm | 17.46mm | 23.81mm | Thru |
| PFMC08042 | 1/2"*1/4"NPT | 3/4"-20 | 36.12mm | 14.29mm | 17.46mm | 23.81mm | Thru |
| PFMC08022 | 1/2"*1/8"NPT | 3/4"-20 | 37.31mm | 14.29mm | 17.46mm | 23.81mm | Thru |
| PFMC08082 | 1/2"*1/2"NPT | 3/4"-20 | 41.28mm | 14.29mm | 17.46mm | 23.81mm | 22.62mm |
| PFMC10062 | 5/8"*3/8"NPT | 7/8"-20 | 37.70mm | 15.08mm | 17.86mm | 26.99mm | Thru |
| PFMC10082 | 5/8"*1/2"NPT | 7/8"-20 | 41.28mm | 15.08mm | 17.86mm | 26.99mm | Thru |
| PFMC12082 | 3/4"*1/2"NPT | 1-1/16"-20 | 45.64mm | 17.07mm | 20.64mm | 33.34mm | Thru |
| PFMC12122 | 3/4"*3/4"NPT | 1-1/16"-20 | 33.34mm | 17.07mm | 20.64mm | 33.34mm | Thru |
| PFMC14122 | 7/8"*3/4"NPT | 1-3/16"-16 | 50.80mm | 19.05mm | 22.23mm | 36.51mm | Thru |
