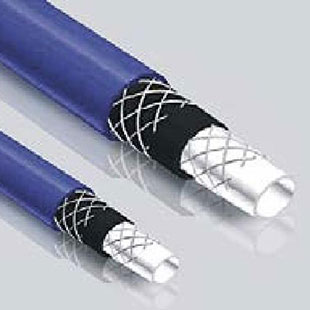

80bar PVC噴霧軟管 PS80顏色：藍紫色溫度範圍：- 15 / + 60 ℃結構特性：柔軟的PVC材質軟管，聚酯纖維加強，具有良好的柔韌性。應用：重型...

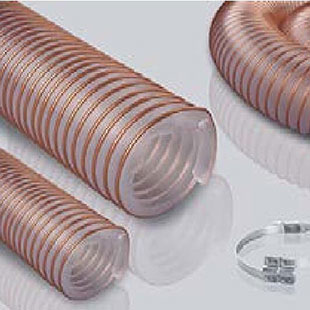

0.6mm耐磨物料輸送可伸縮PU軟管 MP06S顏色：半透明PU管壁, 帶鍍銅色包塑鋼絲螺旋加強（壓縮型)溫度：-40℃ / + 90℃ （短時間可...

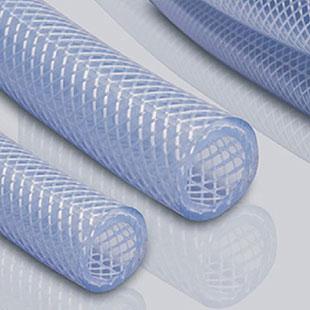

食品級PVC網紋管 FPD
使用範圍：液體食品、果汁、一般水性食品的排吸。適用於酒精度不大於20%液體的輸送。
特性：采用BIO-VINYL環保型PVC原料，高強度聚酯纖維網布襯墊加強。完全不添加鄰苯二甲酸或其他合成增塑劑。
顏色：透明
溫度：-15℃～+ 60℃
認證：EU10/2011
APPLICATIONS: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration. It is often used for filling machines and dispensers.
Features: flexible hose produced with Biovinyl™ and high tenacity polyester reinforcement.
Completely free of phthalates. Resistant to several chemicals and to weather conditions.
Colour: transparent with polyester reinforcement
Temperature range: -15℃ + 60℃
Standards: EU10/2011
|
編碼 |
內徑 |
外徑 |
彎曲半徑 |
工作壓力 |
爆破壓力 |
每卷長度 |
|
|
inch |
mm |
mm |
mm |
bar |
bar |
m |
|
|
FPD004 |
|
4 |
10 |
12 |
25 |
75 |
25/50 |
|
FPD006 |
1/4" |
6 |
12 |
18 |
20 |
60 |
25/50 |
|
FPD008 |
5/16" |
8 |
14 |
28 |
20 |
60 |
25/50 |
|
FPD010 |
3/8" |
10 |
16 |
38 |
18 |
54 |
25/50 |
|
FPD012 |
|
12 |
19 |
45 |
16 |
48 |
25/50 |
|
FPD013 |
1/2" |
13 |
20 |
55 |
16 |
45 |
25/50 |
|
FPD015 |
|
15 |
21/23 |
60 |
14 |
42 |
25/50 |
|
FPD016 |
5/8" |
16 |
22 |
60 |
12 |
36 |
25/50 |
|
FPD019 |
3/4" |
19 |
26/27 |
80 |
10 |
30 |
25/50 |
|
FPD025 |
1" |
25 |
34 |
112 |
9 |
27 |
25/50 |
|
FPD030 |
|
30 |
40 |
138 |
8 |
24 |
25/50 |
|
FPD032 |
1-1/4" |
32 |
41 |
160 |
7 |
21 |
25/50 |
|
FPD038 |
1-1/2" |
38 |
42 |
160 |
6 |
18 |
25/50 |
|
FPD040 |
|
40 |
50 |
180 |
5 |
15 |
25/50 |
|
FPD050 |
2" |
50 |
60 |
250 |
4 |
12 |
25/50 |
