RAYSAN PFA三通（兩端省空間）RTS2A
特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維持良好的尺寸穩定性和耐腐蝕性，並具有良好的機械特征，抗磨損。
材質：PFA
接口形式：擴口連接
最高使用溫度：200℃
最高使用壓力：0.7MPa
傳送介質：液體
*螺帽有PFA和PVDF材質可選
*PVDF不適用於溫度超過120℃的應用

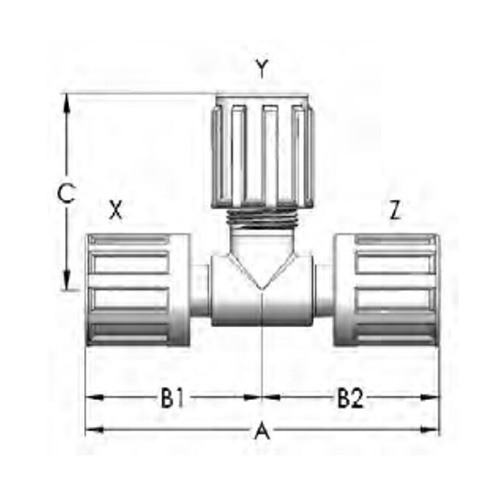

Part No.
X (省空間)
Y
Z (省空間)
通徑
A
B1
B2
C
(inch)
(inch)
(inch)
(mm)
(mm)
(mm)
(mm)
(mm)
RTS2A04S0404S1
1/4"
1/4"
1/4"
3.81mm
83.31mm
41.66mm
41.66mm
42.16mm
RTS2A06S0406S1
3/8"
1/4"
3/8"
3.81mm
87.88mm
43.94mm
43.94mm
42.16mm
RTS2A06S0606S1
3/8"
3/8"
3/8"
6.35mm
87.88mm
43.94mm
43.94mm
44.70mm
RTS2A06S0806S1
3/8"
1/2"
3/8"
6.35mm
87.88mm
43.94mm
43.94mm
47.50mm
RTS2A08S0408S1
1/2"
1/4"
1/2"
3.81mm
93.47mm
46.74mm
46.74mm
42.16mm
RTS2A08S0808S1
1/2"
1/2"
1/2"
9.65mm
93.47mm
46.74mm
46.74mm
47.50mm
RTS2A08S1208S1
1/2"
3/4"
1/2"
9.65mm
93.47mm
46.74mm
46.74mm
56.39mm
RTS2A12S0412S1
3/4"
1/4"
3/4"
3.81mm
108.20mm
54.10mm
54.10mm
42.16mm
RTS2A12S0612S1
3/4"
3/8"
3/4"
6.35mm
108.20mm
54.10mm
54.10mm
44.70mm
RTS2A12S0812S1
3/4"
1/2"
3/4"
9.65mm
108.20mm
54.10mm
54.10mm
47.50mm
RTS2A12S1212S1
3/4"
3/4"
3/4"
16.00mm
108.20mm
54.10mm
54.10mm
68.58mm
RTS2A16S0616S1
1"
3/8"
1"
6.35mm
139.19mm
69.60mm
69.60mm
54.10mm
RTS2A16S0816S1
1"
1/2"
1"
9.65mm
139.19mm
69.60mm
69.60mm
57.40mm
RTS2A16S1216S1
1"
3/4"
1"
16.00mm
139.19mm
69.60mm
69.60mm
56.13mm
RTS2A16S1616S1
1"
1"
1"
22.35mm
139.19mm
69.60mm
69.60mm
68.58mm
