CSQ節水噴槍采用優質黃銅/不鏽鋼結構，堅固耐用，使用壽命長。此外，它還通過耐堿和耐酸的橡膠套進行防震、防熱和防寒保護...

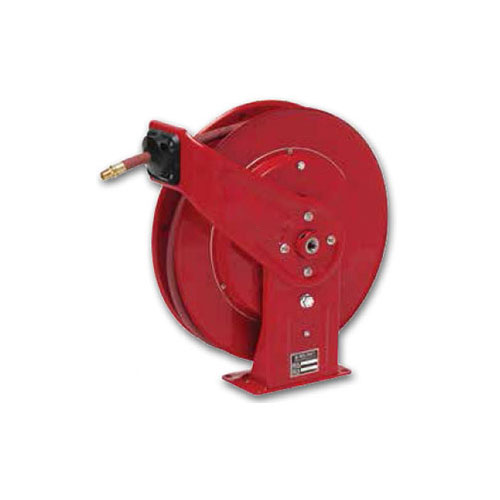

碳鋼卷盤采用優質碳鋼製成，特點包括耐用、耐腐蝕的粉末塗料、多位置導向臂、多功能安裝選項和增強強度的重型鋼...
液壓扣壓機 CM145D
優點：
-精密數字控製
-快換模具架
-設計用於大規模生產
-節能與安全運行
-德國產福伊特無聲泵
-CE認證
| Main Specification | CM145D |
| Max Hydraulic Hose | 2’’ 6SP or 4’’ Industrial Hose |
| Crimping Range mm | 4-124 |
| Die Type | P32 |
| Master Die Length mm | 110 |
| Max Opening mm | +80 |
| Motor KW | 7.5KW by SIEMENS |
| Crimping Force KN | 5000 |
| Crimpings Per Hour | 2500 |
| Control | Digital Control System |
| Pump | By Voith Made in Germany |
| Pump Typ | Silent Pump |
| Valve | Rexroth Made in Germany |
| Foot pedal | Included |
| Die Rack | Included |
| Quick Change Tool | Included |
| Backstop Device | Optional |
| Mirror | Standard |
| Control by Pressure | Optional |
| Noise Level dBA | 60 |
| Protection Class | IP56 |
| L*W*H mm | 900*700*1700 |
| Weight KG | 1300 |
Standard Die Sets Included:
| Die No. | 10* | 12* | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 57 | 63 | 69 | 74* | 78* |
| Length | 60 | 60 | 60 | 60 | 60 | 75 | 75 | 75 | 80 | 80 | 90 | 90 | 100 | 100 | 100 | 110 | 110 |
| Die No. | 84 | 92 | 100 | 108 | 116 | ||||||||||||
| Length | 120 | 120 | 120 | 120 | 120 |
