PFA外牙變徑三通接頭 CJBT 特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維...
特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維持良好的尺寸穩定性和耐腐...
RAYSAN PFA三通（中間省空間）BTSA
特性：專業應用於高純度的半導體行業，也適合於超純水或腐蝕性化學物質，在-40℃至200℃之間可維持良好的尺寸穩定性和耐腐蝕性，並具有良好的機械特征，抗磨損。
材質：PFA
接口形式：擴口連接
最高使用溫度：200℃
最高使用壓力：0.7MPa
傳送介質：液體
*螺帽有PFA和PVDF材質可選
*PVDF不適用於溫度超過120℃的應用

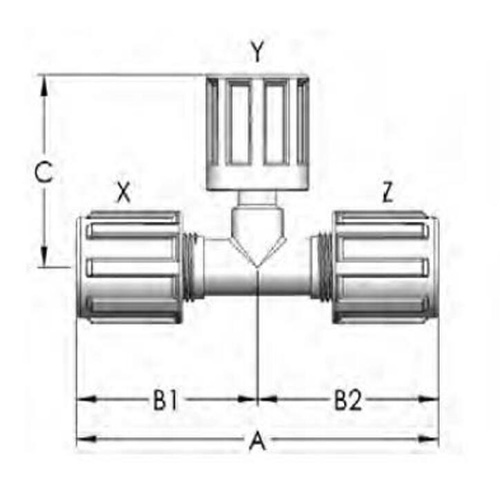

| 編碼 | X | Y (省空間) | Z | 通徑 | A | B1 | B2 | C |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| BTSA0404S041 | 1/4" | 1/4" | 1/4" | 3.81mm | 84.33mm | 42.16mm | 42.16mm | 41.66mm |
| BTSA0406S041 | 1/4" | 3/8" | 1/4" | 3.81mm | 84.33mm | 42.16mm | 42.16mm | 43.94mm |
| BTSA0604S061 | 3/8" | 1/4" | 3/8" | 3.81mm | 89.41mm | 44.70mm | 44.70mm | 41.66mm |
| BTSA0606S061 | 3/8" | 3/8" | 3/8" | 6.35mm | 89.41mm | 44.70mm | 44.70mm | 41.66mm |
| BTSA0608S061 | 3/8" | 1/2" | 3/8" | 6.35mm | 89.41mm | 44.70mm | 47.50mm | 46.74mm |
| BTSA0804S081 | 1/2" | 1/4" | 1/2" | 3.81mm | 95.00mm | 47.50mm | 47.50mm | 41.66mm |
| BTSA0808S041 | 1/2" | 1/2" | 1/4" | 3.81mm | 89.66mm | 47.50mm | 42.16mm | 46.74mm |
| BTSA0808S061 | 1/2" | 1/2" | 3/8" | 6.35mm | 92.20mm | 47.50mm | 44.70mm | 46.74mm |
| BTSA0808S081 | 1/2" | 1/2" | 1/2" | 9.65mm | 95.00mm | 47.50mm | 47.50mm | 46.74mm |
| BTSA0812S081 | 1/2" | 3/4" | 1/2" | 9.65mm | 95.00mm | 47.50mm | 47.50mm | 54.10mm |
| BTSA1204S121 | 3/4" | 1/4" | 3/4" | 3.81mm | 112.78mm | 56.39mm | 56.39mm | 41.66mm |
| BTSA1206S121 | 3/4" | 3/8" | 3/4" | 6.35mm | 112.78mm | 56.39mm | 56.39mm | 43.94mm |
| BTSA1208S081 | 3/4" | 1/2" | 1/2" | 9.65mm | 103.89mm | 56.39mm | 47.50mm | 46.74mm |
| BTSA1208S121 | 3/4" | 1/2" | 3/4" | 9.65mm | 112.78mm | 56.39mm | 56.39mm | 50.04mm |
| BTSA1212S121 | 3/4" | 3/4" | 3/4" | 16.00mm | 112.78mm | 56.39mm | 56.39mm | 54.10mm |
| BTSA1216S121 | 3/4" | 1" | 3/4" | 16.00mm | 112.78mm | 56.39mm | 56.39mm | 69.60mm |
| BTSA1608S161 | 1" | 1/2" | 1" | 9.65mm | 137.16mm | 68.58mm | 68.58mm | 53.09mm |
| BTSA1612S161 | 1" | 3/4" | 1" | 16.00mm | 137.16mm | 68.58mm | 68.58mm | 56.64mm |
| BTSA1616S161 | 1" | 1" | 1" | 22.35mm | 137.16mm | 68.58mm | 68.58mm | 69.60mm |
